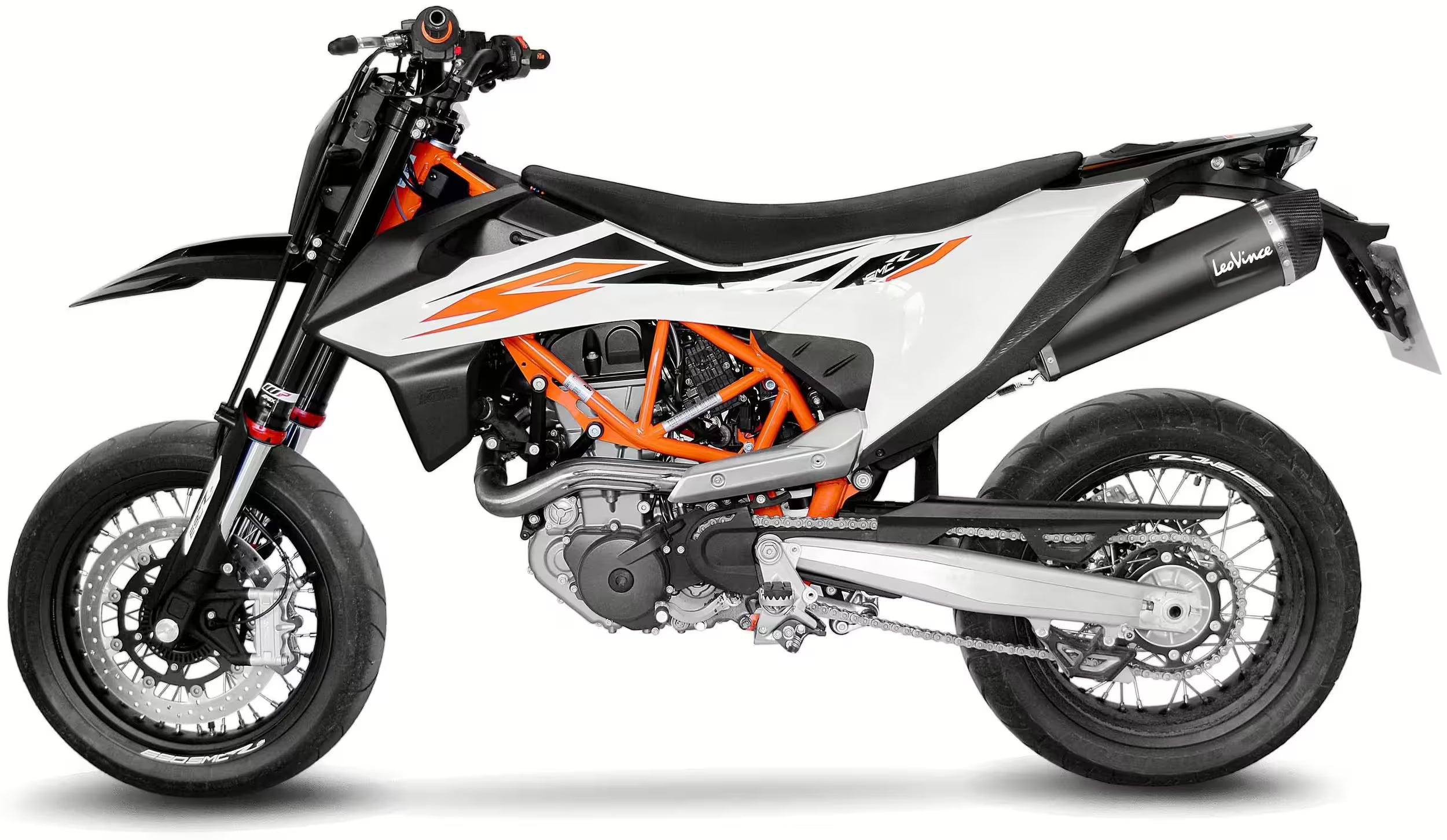

KTM 690 SMC-R 2019 / 2020 - FLAWLESS ECU Performance Flash

More power and torque?
At FLAWLESS Industries, we offer you a software optimization of your ECU or control unit for your KTM 690 SMC-R 2019 to 2020 EURO 4 with our exclusive FLAWLESS ECU Performance Flash, featuring functionalities that will put you in the fast lane. And all this without additional hardware - simply by flashing your control unit.

• Power Increase: We individually write and adapt the tuning software or optimization for your KTM 690 SMC-R to your installed hardware. This achieves an additional power output of approx. 5 to 8 HP and 10 to 12 NM of torque. In addition to the power increase, our FLAWLESS ECU Performance Flash improves drivability: the power delivery of your 690 SMC-R becomes significantly more homogeneous and smoother. The annoying constant-throttle surging of your KTM also completely disappears after the ECU optimization, providing you with a significant increase in drivability. Furthermore, our power increase eliminates the known torque dip of your KTM at approx. 4500 rpm. We also adjust the injection maps so that the air-fuel ratio values of your 690 SMC-R are now in the optimal range. This also achieves thermal relief for the exhaust valves and cylinder heads due to the resulting lower exhaust gas temperatures.

• FLAWLESS Performance Kit: Experience a whole new dimension of driving dynamics and power delivery with our FLAWLESS ECU Performance Flash and the accompanying FLAWLESS Performance Kit. Our goal was to develop a product that offers you maximum power increase and improved drivability with minimal effort – and that's exactly what we achieved:
– More Power and Torque: In combination with our FLAWLESS ECU Performance Flash, the Performance Kit increases the peak power of your KTM 690 SMC-R by an impressive 9 to 10 HP. In the mid-range, you also benefit from a torque increase of 17 to 18 NM.

• FLAWLESS Gear Switch: With our FLAWLESS Gear Switch, your 690 SMC-R gets an additional riding mode – the Safemap. This offers you a third mode that is automatically activated during normal startup. In this mode, your SMC-R runs with the original mapping (A2 or A), regardless of which map you selected via the FLAWLESS Power Mapswitch. However, as soon as you start the ignition with the second gear engaged, the engine light in your speedometer will flash. This signals that the FLAWLESS ECU Performance Flash is now active in your individual configuration. After starting, the engine light goes out, and you can use the full power of the ECU Performance Flash and now have both riding modes of your 690 SMC-R's map switch available. Please indicate in the comment field at checkout whether you want the Safemap. If yes, whether the Safemap should be configured as a standard A-map or standard A2-map.

• FLAWLESS Power Mapswitch: Full attack at the push of a button? With this option, you can switch between 2 mappings on the handlebar of your KTM 690 SMC-R, so you have the stock mapping on Map 1 and FLAWLESS ECU Performance Flash with all desired functions available on Map 2!

• FLAWLESS Quickshifter: Discover our completely newly developed FLAWLESS Quickshift algorithm, which gives your 690 SMC-R unparalleled shifting speed and sportiness! We have not only refined the interruption times but optimized the entire quickshifter algorithm to offer you the ultimate quickshifter experience. For an even more intense riding experience, we optionally offer shift acoustics in Map 2, which gives each gear change an impressive soundscape - perfect for all who seek maximum sportiness! Important - with a catalytic converter configuration, shift acoustics are not possible.

• Hardcut Limiter and Launch Control: With the Hardcut Limiter, the standard rev limiter of your SMC-R becomes a true race limiter, providing an unmistakable riding experience. Launch Control enables you to achieve a perfect race start - accompanied by an impressive soundscape. In riding mode 2, when 1st gear is engaged, the rpm is limited to 6500 U/min. As soon as your 690 SMC-R starts moving, the rpm automatically increases according to the front wheel speed. With both the Hardcut Limiter and Launch Control, flames from the exhaust are guaranteed!

Important: The Hardcut Limiter and Launch Control may only be used in conjunction with an exhaust system without a catalytic converter and without a DB killer. Please note that increased engine wear cannot be ruled out with excessive use.

• Linear-Throttle: Is the previous throttle response not good enough for you? Upon request, we program your throttle grip characteristic 1 to 1 with the throttle valve position - 50% throttle grip means 50% throttle valve position. For the ultimate throttle response of your KTM 690 SMC-R!

• Pops and Bangs: Give your KTM 690 SMC-R the final acoustic touch. Through our optimization, we can configure the deceleration fuel cut-off individually according to your wishes and the installed setup of your KTM 690 SMC-R, and if desired, also assign it to the respective riding modes. Important - with a catalytic converter configuration, only a deceleration gurgle is possible.

You can customize the optimization or mapping directly during the order process according to your wishes. The selection fields are available for this purpose.
Please indicate in the comment field at checkout what setup you are running. It is important to specify which end muffler (LeoVince, Remus, Austin Racing, Arrow, Akrapovic, ...), which air filter (K&N sport air filter, BMC, Rade Garage, ...) and air filter cover (open air filter / Powerparts cover, perforated cover, ...) as well as whether you have a catalytic converter installed.

Process:
1. Order the FLAWLESS ECU Performance Flash or your ECU Software Optimization for your KTM 690 SMC-R with the desired options.
2. Send your control unit or ECU well-packaged to us (FLAWLESS Industries - Pilatusring 20, 91353 Hausen, Germany).
3. We process the software of your control unit on the day of arrival and usually send it back to you within 24 hours.
4. Unpack, connect, and ride.

Important

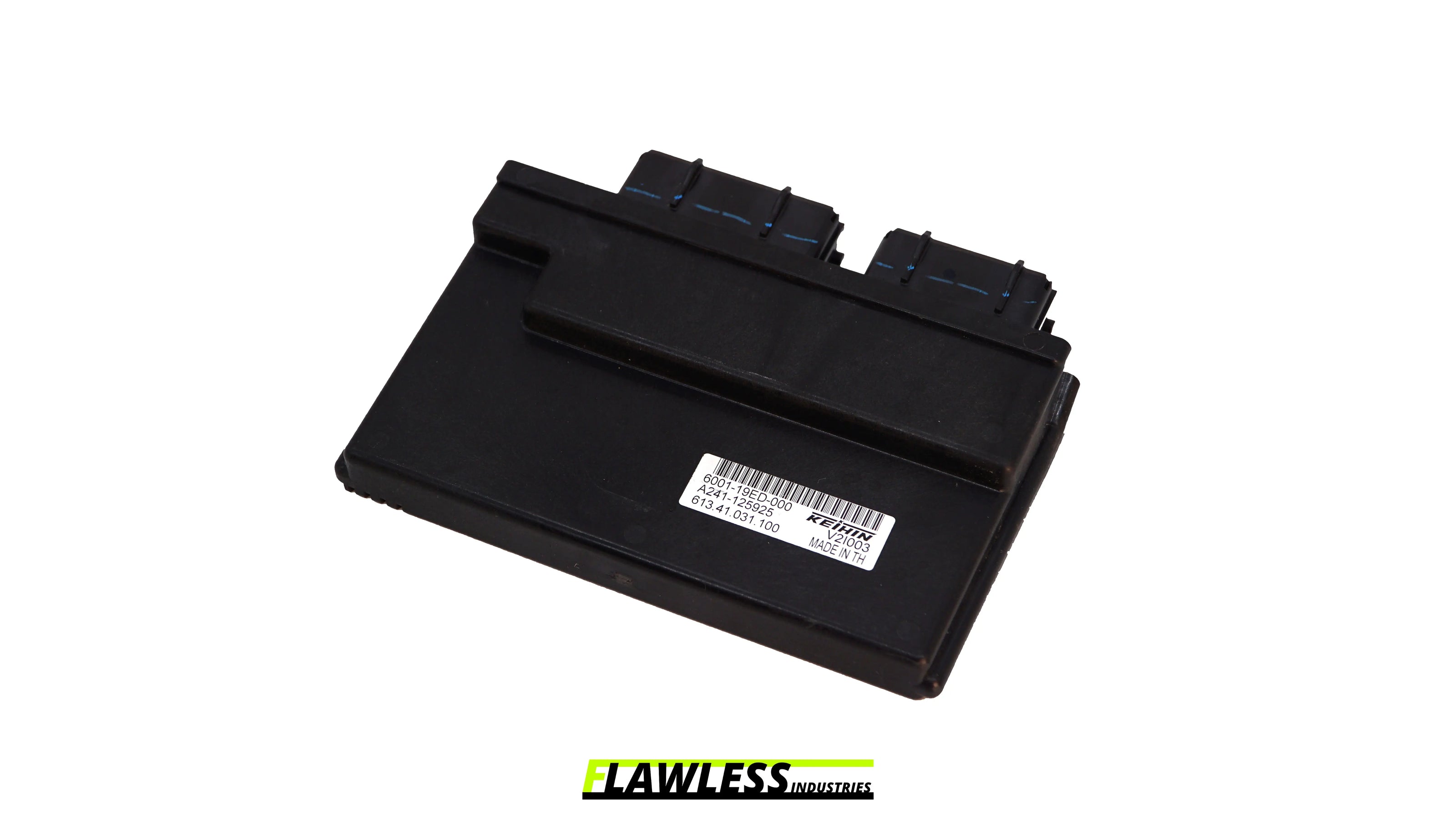

To offer you this service, it is necessary that you send us your removed control unit from your vehicle. As soon as we have received it, we will individually adapt your FLAWLESS ECU Performance Flash. We usually send your control unit with the modified software back to you within 24 hours so that you can reinstall it as quickly as possible.
To achieve the specified performance, it is necessary to use an accessory end muffler (LeoVince, Remus, Austin Racing, Arrow, Akrapovic, etc.), a sport air filter (K&N sport air filter, BMC, Rade Garage, etc.) as well as the Powerparts air filter cover or perforated cover. The upgrade air filter we offer is a K&N sport air filter. The control unit is not damaged or opened. The FLAWLESS ECU Performance Flash is not visible from the outside. KTM testers function without restrictions. The software number remains unchanged.

- Suitable for KTM 690 SMC-R models from 2019 to 2020 (EURO 4)
- Simple and fast service
- Maximum performance increase and improved handling
